User Manual#

Overview#

For an introduction to KBMOD and its components, see the KBMOD Overview page.

GPU Requirements#

To build KBMOD you will require: * GPU and drivers * Cuda Toolkit >= 8.0 * CMake >= 3.23

Ensure your NVIDIA drivers are correctly installed and that the graphics cards are visible and working normally. The easiest way to achieve this would be to run

nvidia-smi

Ensure that the NVIDIA’s nvcc compiler is available on your system and is visible by running

nvcc --version

It is possible that the compiler is installed but not discoverable. In that case add its location to the system environment PATH variable by, if using bash for example, setting

export PATH=/path/to/cuda:$PATH

If CUDA Toolkit is not availible on your system follow their offical installation instructions. Optionally, if you use Anaconda virtual environments, the CUDA Toolkit is also availible as conda install cudatoolkit-dev. Depending on the version of drivers on your GPU, you might need to use an older cudatoolkit-dev version.

Other problems that we have seen in the past include:

CUDA / compiler version mismatch. Some versions of nvcc have a max supported version of gcc.
Inability of cmake to find nvcc. Try setting your PATH environmental variable as above.

Installing KBMOD#

Once you have the GPU prerequisites installed as described in the previous section, you can install KBMOD using a combination of git and pip. We recommend you perform the installation from a virtual environment such as conda.

git clone https://github.com/dirac-institute/kbmod.git --recursive
cd kbmod
pip install .

You can run then run the tests to check that everything works:

cd tests
python -m unittest

If tests fail or more than a few tests are skipped then it is possible that cmake was unable to find your GPU when compiling the code. Depending on environment, you may need to install the CUDA libraries.

conda install -c conda-forge cudatoolkit-dev

If you are seeing a warning saying “An NVIDIA GPU may be present on this machine, but a CUDA-enabled jaxlib is not installed. Falling back to cpu.” then you need to install the JAX cuda libraries ( installation instructions here ). For example you can install the libraries for an NVIDIA GPU on Linux with pip as:

pip install --upgrade "jax[cuda12]"

If you still run into problems finding the GPU, try running cmake3 -B src/kbmod -S . from the KBMOD directory. This will parse the CMakeLists.txt and produce more verbose output.

Running KBMOD#

To run a search, KBMOD must be provided with

appropriately pre-processed input data (see Input Files)
appropriate search and filter parameters (see Search Parameters)

For an introduction to the KBMOD search algorithm, see the Search Algorithm and Search Space page.

The search is initiated via the run_search class and consists of several phases:

Data is loaded from the input files as specified above (see Input Files for more details).
The shift and stack approach is used to search for potential trajectories originating from each pixel in the first image.
The list of potential trajectories is filtered using various metrics (see Results Filtering).
Remaining trajectories are clustered to remove duplicates. Only one trajectory per cluster is kept (see Results Filtering).
The found trajectories are output to result files for later analysis (see Output Files).

Data Model#

The WorkUnit is the basic data unit for KBMOD. It includes all of the information needed for KBMOD to run, including images, time stamps, WCS, and metadata.

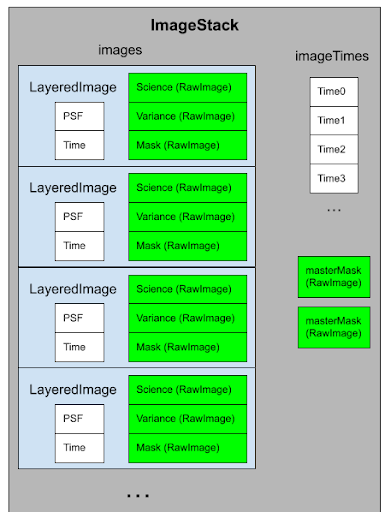

Within the WorkUnit, KBMOD uses an hierarchy of three nested data structures to store the image data over which it searches.

ImageStack#

The ImageStack holds all of the image data for every time step. The main information stored is the images array, which holds one LayeredImage structure for each time step. The ImageStack also stores information that applies for all images such as a globalMask and an avgTemplate.

LayeredImage#

Each layered image holds the data from a single exposure, which consists of multiple layers including: a science image (the flux values), the variance image (representing the noise at each pixel), and MaskImage (representing per-pixel errors). In addition the LayeredImage tracks per-exposure information such as the PSF for the image and the time at which the image was taken.

RawImages#

A RawImage is the lowest level of data storage and effectively consists of a two-dimensional array of floating point values. These values can take on a variety of meanings depending on the use, including flux values, variance values, mask indicators, psi values, and phi values.
